Industrial Mirror Chrome Roller | Precision-Engineered Gloss Plating Rollers

Industrial mirror chrome rollers serve as critical contact components in web handling, film extrusion, and material conversion lines. These rollers impart uniform surface gloss, eliminate web defects, and maintain dimensional stability under high-speed operation. Fabrication involves precision machining of alloy steel or stainless steel, deep-hole drilling for thermal control (when required), high-frequency induction hardening, multi-stage grinding, and micro-finish chrome electroplating. Finished surfaces achieve optical-grade smoothness (Ra below 0.02 micrometers), preventing material adhesion and zero-damage contact during continuous processing.

Mirror Finish Gloss Plating Chrome Roller
● Highly polished surface. ● High hardness and excellent wear resistance. ● Anti-adhesion performance. ● Weight: 20-1000KG. ● Shaft Material: 45# Carbon Steel / 304 316Stainless Steel. ● End Cap

view more Contact Us
Mirror Finish Metal Roller
Ultra-mirror chrome rollers for high-end optical applicationsRa＜0.02μm, total runout ≤25μm, stable operationSmooth, wear-resistant and anti-corrosion surfaceCustom sizes availableMOQ: 10 pieces

view more Contact Us
Industrial Mirror Rollers
● Degree of specular gloss. ● Zero-damage contact with materials. ● Dynamic Balance: G2.5. ● Shaft Material: 45# Carbon Steel / 304 316Stainless Steel. ● The coefficient of friction is extremely low.

view more Contact Us

Mirror Finish Gloss Plating Chrome Roller high quality

Bearing Types

Mirror Finish Gloss Plating Roller
• Characteristics: Features a highly polished, zero-defect chrome layer optimized for high-end optical film and sheet production.

• Typical Metric: Ra less than or equal to 0.02 micrometers, radial runout less than or equal to 0.025 millimeters.

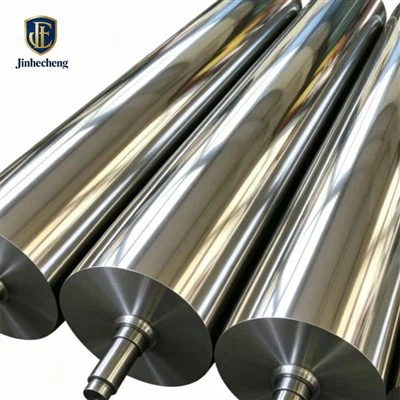

Jacketed / Cooling-Heating Mirror Roller
• Characteristics: Internal spiral baffle or flow channel design ensuring rapid thermal exchange for polymer casting and sheet cooling lines.

• Typical Metric: Uniform temperature distribution across the roll face (temperature difference below 1 degree Celsius).

Heavy-Duty Industrial Mirror Roller
• Characteristics: Engineered for high line-pressure applications such as calendering and heavy laminating.

• Typical Metric: Weight capacity ranging from 20 kg to 1,000 kg plus, utilizing thick-walled seamless alloy steel tubing.

Materials & Surface Treatments

Base Shell Materials:
45# forged carbon steel (high tensile strength, cost-effective for general industrial use).
304 / 316 stainless steel (corrosion-resistant choice for chemical, food, and medical converting environments).
Alloy steel (such as 42CrMo) for high-torque and high-load transmission shafts.

Electroplated Hard Chrome Layer:
• Thickness: 0.03 mm to 0.15 mm (customizable per wear life requirements).
• Hardness: HV 900 to 1000 (equivalent to HRC 55 to 60), providing exceptional abrasion resistance and low friction coefficients.

Surface Finishing Process:
Multi-stage cylindrical grinding followed by diamond buffing and compound polishing to eliminate micro-scratches and achieve mirror gloss.

Applications

Plastic Film & Sheet Extrusion:

Casting rolls and cooling rolls for BOPP, PET, CPP, PVC, and PE film production lines.

Converting & Packaging:

Coating, laminating, and embossing backup rolls for flexible packaging materials.

Textile & Non-Woven Processing:

Calendering rolls for synthetic leather, fabric glossing, and web smoothing.

Paper Making & Printing:

Press rolls and supercalender rolls requiring non-stick, low-friction surfaces.

Technical Specifications

Parameter	Specification Range
Outer Diameter (OD)	80 mm to 1200 mm
Face Length (TL)	Up to 6000 mm
Weight Capacity	20 kg to 1000+ kg
Surface Roughness (Ra)	0.01 to 0.02 micrometers (Mirror finish)
Chrome Hardness	HV 900 to 1000
Dynamic Balance Grade	ISO 1940 G2.5 to G1.0
Radial Runout	Less than or equal to 0.025 mm
Shaft Materials	45# Carbon Steel / 304 / 316 Stainless Steel

Custom Roller Manufacturing

Manufacturing custom mirror rollers requires adherence to engineering drawings and precise operational parameters. Engineering and production workflows accommodate custom specifications:

Specification Review: Analysis of load requirements, operating speed, wrap angle, and thermal exchange demands.

Structural Calculation: Finite Element Analysis (FEA) for deflection control on long-span rollers.

Custom Machining Options:
• Journal configurations (straight shafts, tapered fits, integrated or inserted journals).

• Internal flow routing (spiral baffles, circumferential channels, or center-tube cooling).

• Balancing adjustments (static and high-speed dynamic balancing).

Manufacturing & Quality Control

Machining & Welding: Heavy-duty CNC lathes, deep-hole boring machines, and automatic submerged arc welding for structural integrity.

Thermal Treatment: Annealed and stress-relieved base tubes prior to finish machining to prevent post-machining distortion.

Electroplating & Polishing: Controlled current-density chrome plating baths ensuring uniform micro-crack distribution and adhesion strength, followed by automated precision polishing.

Inspection Protocols:
• Ultrasonic testing (UT) on raw forgings and welded seams.
• Electronic surface roughness profilometers to verify Ra values.
• Hardness testers (Leeb/Vickers) for chrome layer verification.
• Dynamic balancing test rigs calibrated to ISO 1940 standards.

How to Choose the Right Roller

Define Thermal Requirements:

Determine if the process requires internal fluid circulation (cooling or heating). Select jacketed or spiral-baffle designs for stable thermal management.

Verify Mechanical Load & Deflection:

Calculate web tension and line pressure. Choose adequate wall thickness and shaft diameter to restrict roll deflection below critical limits (less than roll length divided by 2500).

Specify Surface Finish Tolerances:

Match the Ra requirement to the end product. Optical films require Ra below 0.02 micrometers, while standard web handling permits higher tolerances.

Confirm Dynamic Balancing Grade:

Match the balancing grade to operational RPM (such as Grade G2.5 for high-speed lines exceeding 500 RPM).

Our Certificate

FAQ

Q: What is the typical lead time for custom mirror chrome rollers?

A: Standard custom production requires 15 to 30 days, depending on roller dimensions, raw material availability (such as specialized stainless steel grades), and quantity.

Q: How do you prevent pinholes and micro-cracks in the chrome layer?

A: Electroplating parameters, bath chemistry monitoring, and multi-stage intermediate grinding eliminate pinholes and ensure a uniform, defect-free chrome surface before final buffing.

Q: Can these rollers be repaired or re-chromed after wear?

A: Yes. Worn rollers undergo chemical stripping of the old chrome layer, journal inspection, base re-grinding, and re-plating to restore original dimensions and mirror finish.

Q: What dynamic balancing standards are applied to high-speed rollers?

A: Rollers undergo high-speed dynamic balancing strictly conforming to ISO 1940 Grade G2.5 (or Grade G1.0 for ultra-high-speed applications) to minimize centrifugal vibration.

Q: How is roller deflection managed for long face lengths?

A: Engineering calculations evaluate wall thickness, shell diameter, and material modulus. Camber grinding (crown grinding) is applied when necessary to compensate for deflection under operating loads.

Q: What documentation is provided with shipment?

A: Each delivery includes inspection reports covering dimensional tolerances, surface roughness (Ra), chrome hardness, and dynamic balancing test certificates.
